Authorization Code with PKCE

The Authorization Code with Proof Key for Code Exchange (PKCE) flow is an extension of the Authorization Code grant flow.

PKCE protects the authorization code exchange by requiring the client to prove that it initiated the authorization request.

For public clients, such as Single Page Applications (SPAs) and mobile apps, PKCE can be used without a client_secret.

Confidential clients can combine PKCE with client authentication using a client_secret for additional security.

Note: PKCE was originally designed for public clients such as mobile and desktop applications, but it can also be used by web applications and confidential clients.

How it works

The Authorization Code with PKCE flow works as follows:

1. The client generates a code_verifier and derives a code_challenge from it.
2. The client sends the code_challenge to the /oauth/authorize endpoint.
3. After successful authentication and authorization, Trimble Identity returns an authorization_code to the registered redirect_uri.
4. The client sends the authorization_code and code_verifier to the /oauth/token endpoint.
5. Trimble Identity validates the authorization code and the code_verifier.
6. The server responds with an access_token, id_token, and optionally a refresh_token.
7. The client uses the access_token to authorize API requests.

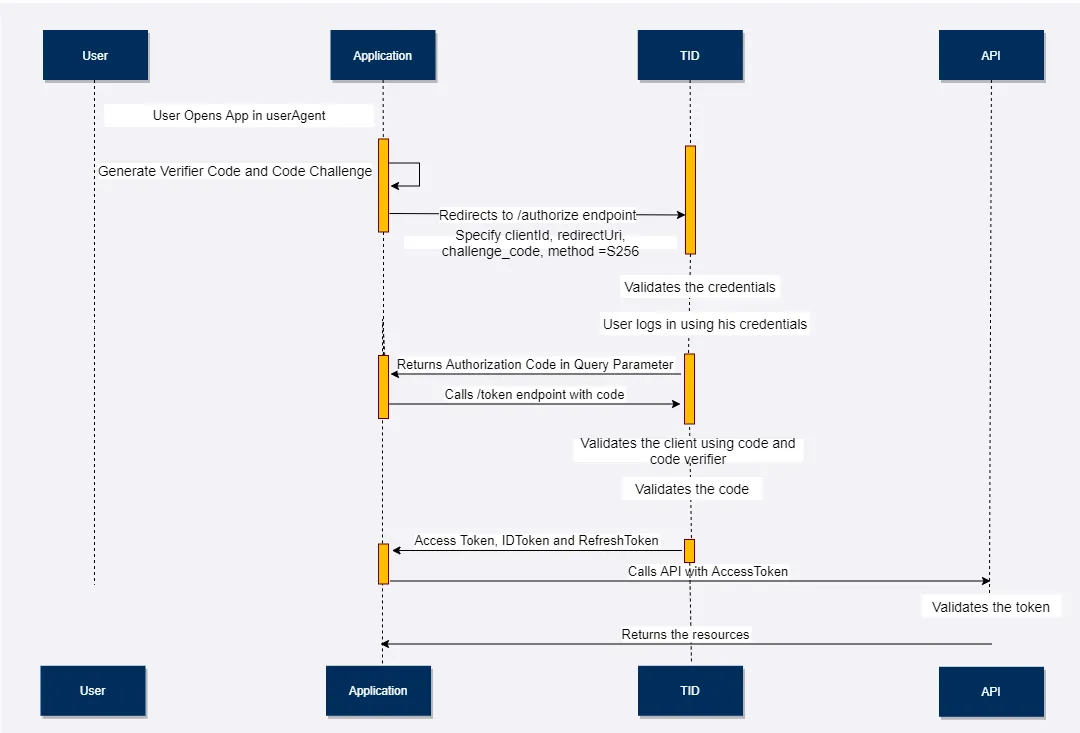

The following diagram shows the Authorization Code with PKCE flow:

---

Client Types and Authentication Methods

Trimble Identity supports PKCE with different client types.

Public Clients

Examples of public clients include:

• Single Page Applications (SPAs)
• Mobile applications
• Desktop applications

Public clients:

• Use PKCE without a client_secret or other client authentication credentials.
• Use the code_verifier to prove that the client requesting the token is the same client that initiated the authorization request.
• Are suitable for applications that cannot safely store a client_secret.

Confidential Clients

Examples of confidential clients include backend or server-side applications that can securely store credentials.

Confidential clients can use PKCE along with client authentication.

Trimble Identity supports the following methods for transmitting client credentials:

Option 1: Authorization Header

Use PKCE and send the client credentials using the HTTP Authorization header.

The credentials are Base64-encoded in the following format:

client_id:client_secret

The resulting value is sent as:

Authorization: Basic {Base64(client_id:client_secret)}

Security Warning

While this method separates credentials from the request body, HTTP headers can be logged by Web Application Firewalls (WAF) and intermediary proxies, potentially exposing sensitive client credentials. This method is supported for legacy compatibility.

Option 2: POST Body — Recommended

Use PKCE and send the client credentials as form parameters in the request body.

client_id={client_id}&client_secret={client_secret}

This method is still supported for backward compatibility with systems that use client credentials in the POST body.

Security Consideration

Never log, expose, or share your client_secret. Store it securely in your application and transmit it only over HTTPS. Treat the client_secret like a password.

---

Generate a Code Verifier and Code Challenge

The first step is to generate a new code_verifier and code_challenge.

Generate a new pair for every authorization request.

Code Verifier

The code_verifier is a high-entropy random string.

It must:

• Contain only the following characters:

  • A-Z
  • a-z
  • 0-9
  • -
  • .
  • _
  • ~

• Be between 43 and 128 characters long.

Example in Python

import base64
import os
import re

def generate_code_verifier(code_length):
    code_verifier = base64.urlsafe_b64encode(
        os.urandom(code_length)
    ).decode("utf-8")

    code_verifier = re.sub(
        r"[^a-zA-Z0-9._~-]+",
        "",
        code_verifier
    )

    return code_verifier

Code Challenge

The code_challenge is the Base64 URL-encoded SHA-256 hash of the code_verifier.

For PKCE, use the S256 code challenge method.

Example in Python

import base64
import hashlib

def to_pkce_challenge(code_verifier):
    code_challenge = hashlib.sha256(
        code_verifier.encode("utf-8")
    ).digest()

    code_challenge = base64.urlsafe_b64encode(
        code_challenge
    ).decode("utf-8")

    return code_challenge.replace("=", "")

The resulting value is sent to the authorization endpoint as the code_challenge.

---

Encode Client Credentials

This step applies only to confidential clients that use client authentication.

For the Authorization Header method, Base64-encode the following value:

client_id:client_secret

Example in Python

import base64

client_id = "62be6b7d-7fec-4492-8f7d-77e0262226a56"
client_secret = "your-client-secret"

credentials = f"{client_id}:{client_secret}"

encoded = base64.b64encode(
    credentials.encode("utf-8")
).decode("utf-8")

print(encoded)

Use the resulting value in the Authorization header:

Authorization: Basic {Base64(client_id:client_secret)}

Important: Do not use a real client_secret in source code, documentation, or examples. Store it securely and replace it with a placeholder such as your-client-secret.

---

Authorization Request

After generating the code_verifier and code_challenge, send the code_challenge to the authorization server.

The authorization request is a GET request to:

GET {baseURL}/oauth/authorize

Parameters

Parameter	Description	Required
client_id	Application ID registered for the application (UUID).	Yes
response_type	Must be code for the Authorization Code flow. Refer to our well-known OpenID configuration document for other supported response types and combinations: https://id.trimble.com/.well-known/openid-configuration	Yes
scope	Space-delimited list of requested scopes. Standard OpenID Connect scopes include openid, profile, and email. Application-specific scopes may vary by TID integration.	Yes
redirect_uri	Redirect URL registered with Trimble Identity.	Yes
code_challenge	Code challenge generated from the code_verifier.	Yes
code_challenge_method	PKCE challenge method. Use S256.(plain text is not supported due to security constraints)	Yes
account_id	Identifier of the account to be used during authentication. Include this only when a specific account context is required.	No
state	Random value generated by the client to maintain request state and help protect against request forgery.	No
ui_locales	Locale used for the Trimble Identity UI.	No
prompt	Controls the authentication UI behavior.	No
login_hint	Email address to pre-populate in the sign-in or sign-up page.	No
identity_provider	Specifies a particular federated identity provider, such as okta_trimble.	No
nonce	Random value generated by the client to bind the authorization request to the returned id_token and help prevent token replay attacks. The client must verify that the nonce claim in the id_token matches the original value sent in the authorization request.	No

redirect_uri

The redirect_uri parameter specifies where Trimble Identity redirects the user after successful authentication and authorization.

Trimble Identity supports loopback URLs for local development and testing, as well as application-specific callback URIs for mobile and desktop apps:

• http://localhost:{port}/callback
• http://127.0.0.1:{port}/callback
• com.example.myapp://oauth2/callback

Both localhost and 127.0.0.1 support dynamic ports, allowing you to run multiple applications or instances on different ports during development.

For production environments, use HTTPS URLs with your actual domain registered with Trimble Identity.

Important: The redirect URI must exactly match the registered redirect_uri in your application configuration.

ui_locales

The ui_locales parameter specifies the language/locale that Trimble Identity should use for its UI.

For more information about supported locales and internationalization, refer to the Internationalization documentation.

If the exact locale is unavailable, the UI falls back to the base language before using the user’s browser preference.

prompt

The prompt parameter controls how Trimble Identity handles the authentication UI.

Supported values include:

Value	Description
none	Trimble Identity does not display any UI. If there is no existing SSO session, the request redirects with an error such as login_required.
login	Trimble Identity always displays the sign-in UI, even if an SSO session already exists. Use this when the application needs to re-verify the user’s identity before allowing access to sensitive resources, or when you want to force fresh authentication instead of reusing an existing session.
create	Trimble Identity displays the sign-up page instead of the sign-in page. Use this when your application needs to direct unknown users to sign up during registration flows, or when you want to route users straight to TID sign-up instead of sign-in.

login_hint

The login_hint parameter allows an application to provide an email address for the sign-in or sign-up page.

For example:

login_hint=user@example.com

This parameter is optional.

identity_provider

The identity_provider parameter allows an application to specify a particular federated identity provider.

For example:

identity_provider=okta_trimble

This parameter is optional.

For more information, refer to the Federations documentations.

account_id

The account_id parameter is optional.

Use this IAM account ID when you need the resulting access_token and id_token JWTs to reflect a specific account context associated with the user.

If account_id is not provided, the default authentication flow proceeds without an explicit account context.

If the account_id is invalid or not associated with the user, Trimble Identity redirects to the configured callback URI with an error response.

nonce

The nonce parameter is an OpenID Connect security value used to bind the authorization request to the returned id_token.

Generate a new random value for every authorization request:

nonce={nonce}

The client must store the original value and verify that the nonce claim in the returned id_token matches it exactly. If the values do not match, the token should be rejected.

This parameter is optional, but recommended for OpenID Connect flows that use id_token validation.

---

Example Authorization Request

GET https://stage.id.trimblecloud.com/oauth/authorize?
    client_id={client_id}
    &response_type=code
    &scope=openid%20profile%20email
    &redirect_uri=https://localhost/callback
    &state={state}
    &account_id={account_id}
    &code_challenge={code_challenge}
    &code_challenge_method=S256

The actual request should be sent as a single URL.

For example:

https://stage.id.trimblecloud.com/oauth/authorize?client_id={client_id}&response_type=code&scope=openid%20profile%20email&redirect_uri=https://localhost/callback&state={state}&account_id={account_id}&code_challenge=E9Melhoa2OwvFrEMTJguCHaoeK1t8URWbuGJSstw-cM&code_challenge_method=S256

After successful authentication and authorization, Trimble Identity redirects the browser to the registered redirect_uri with the authorization code.

Example Response

https://localhost/callback?code=1a44a0...&state={state}

The authorization code is short-lived and must be exchanged for tokens at the /oauth/token endpoint.

Important: The client must retain the original code_verifier because it is required during the token request.

---

Token Request

The authorization code is exchanged for tokens using the /oauth/token endpoint.

POST {baseURL}/oauth/token

The token request differs slightly depending on the client type.

---

Public Clients — PKCE Only

Public clients, such as SPAs and mobile applications, use PKCE without a client_secret.

Headers

Content-Type: application/x-www-form-urlencoded

Parameters

Parameter	Description	Required
grant_type	Must be authorization_code.	Yes
code	Authorization code returned by the /oauth/authorize endpoint.	Yes
redirect_uri	The same redirect URI used in the authorization request.	Yes
client_id	Application ID (UUID).	Yes
code_verifier	The original code_verifier generated before the authorization request.	Yes

Example Request

POST /oauth/token
Host: stage.id.trimblecloud.com
Content-Type: application/x-www-form-urlencoded

grant_type=authorization_code&
client_id={client_id}&
code={code}&
redirect_uri={redirect_uri}&
code_verifier={code_verifier}

---

Confidential Clients — PKCE + Client Authentication

Confidential clients use PKCE together with client authentication.

Trimble Identity supports two methods for sending the client credentials.

Option 1: Authorization Header

Send the client_id and client_secret using the HTTP Authorization header.

Headers

Authorization: Basic {Base64(client_id:client_secret)}
Content-Type: application/x-www-form-urlencoded

Parameters

Parameter	Description	Required
grant_type	Must be authorization_code.	Yes
code	Authorization code returned by the /oauth/authorize endpoint.	Yes
redirect_uri	The same redirect URI used in the authorization request.	Yes
client_id	Application ID (UUID).	Yes
code_verifier	The original code_verifier generated before the authorization request.	Yes

Example Request

POST /oauth/token
Host: stage.id.trimblecloud.com
Authorization: Basic {Base64(client_id:client_secret)}
Content-Type: application/x-www-form-urlencoded

grant_type=authorization_code&
client_id={client_id}&
code={code}&
redirect_uri={redirect_uri}&
code_verifier={code_verifier}

---

Option 2: POST Body — Recommended

For backward compatibility, confidential clients can send the client_secret in the POST body.

Headers

Content-Type: application/x-www-form-urlencoded

Parameters

Parameter	Description	Required
grant_type	Must be authorization_code.	Yes
code	Authorization code returned by the /oauth/authorize endpoint.	Yes
redirect_uri	The same redirect URI used in the authorization request.	Yes
client_id	Application ID (UUID).	Yes
client_secret	Client secret associated with the application.	Yes
code_verifier	The original code_verifier generated before the authorization request.	Yes

Example Request

POST /oauth/token
Host: stage.id.trimblecloud.com
Content-Type: application/x-www-form-urlencoded

grant_type=authorization_code&
client_id={client_id}&
client_secret={client_secret}&
code={code}&
redirect_uri={redirect_uri}&
code_verifier={code_verifier}

Note

The POST body method is recommended for confidential clients. The Authorization Header method is supported for legacy compatibility, but it can be logged by WAFs and intermediary proxies.

---

Token Response

For all supported client types, a successful token request returns an access token and ID token, and may also return a refresh token.

Example Response

{
  "access_token": "eyJ0e...",
  "token_type": "bearer",
  "expires_in": 3600,
  "id_token": "eyJ0e...",
  "refresh_token": "VQBrv..."
}

Response Parameters

Parameter	Description
access_token	Token used to authorize API requests.
token_type	Type of access token.
expires_in	Lifetime of the access token in seconds.
id_token	OpenID Connect ID token containing identity information about the authenticated user.
refresh_token	Optional token that can be used to obtain a new access token without requiring the user to authenticate again.

Security Warning

Access tokens, ID tokens, refresh tokens, authorization codes, code verifiers, and client secrets are sensitive values. Do not log or expose them unnecessarily.

---

Decode and Verify JWT Tokens

• To decode and verify the TID JWT Token, refer to Decode JWT
