Trimble Identity (TID) Token-Exchange: Controller-to-Sensor Delegation

Overview

This is an extension to TID’s Token-Exchange mechanism that enables secure data aggregation and transmission from sensors without internet access. A nearby controller acts on behalf of the sensor device, with both devices pre-registered in TID and possessing unique certificates. This allows secure delegation of the sensor’s authority to transmit data to Trimble APIs.

---

When to Use This Flow

Use Case	Description
Field-to-Cloud (F2C)	Sensor devices without direct internet access delegate authority to a controller
Secure device delegation	Both sensor and controller are registered in TID/IAM with certificates
BLE-based communication	Secure, local communication using Bluetooth Low Energy (BLE)

---

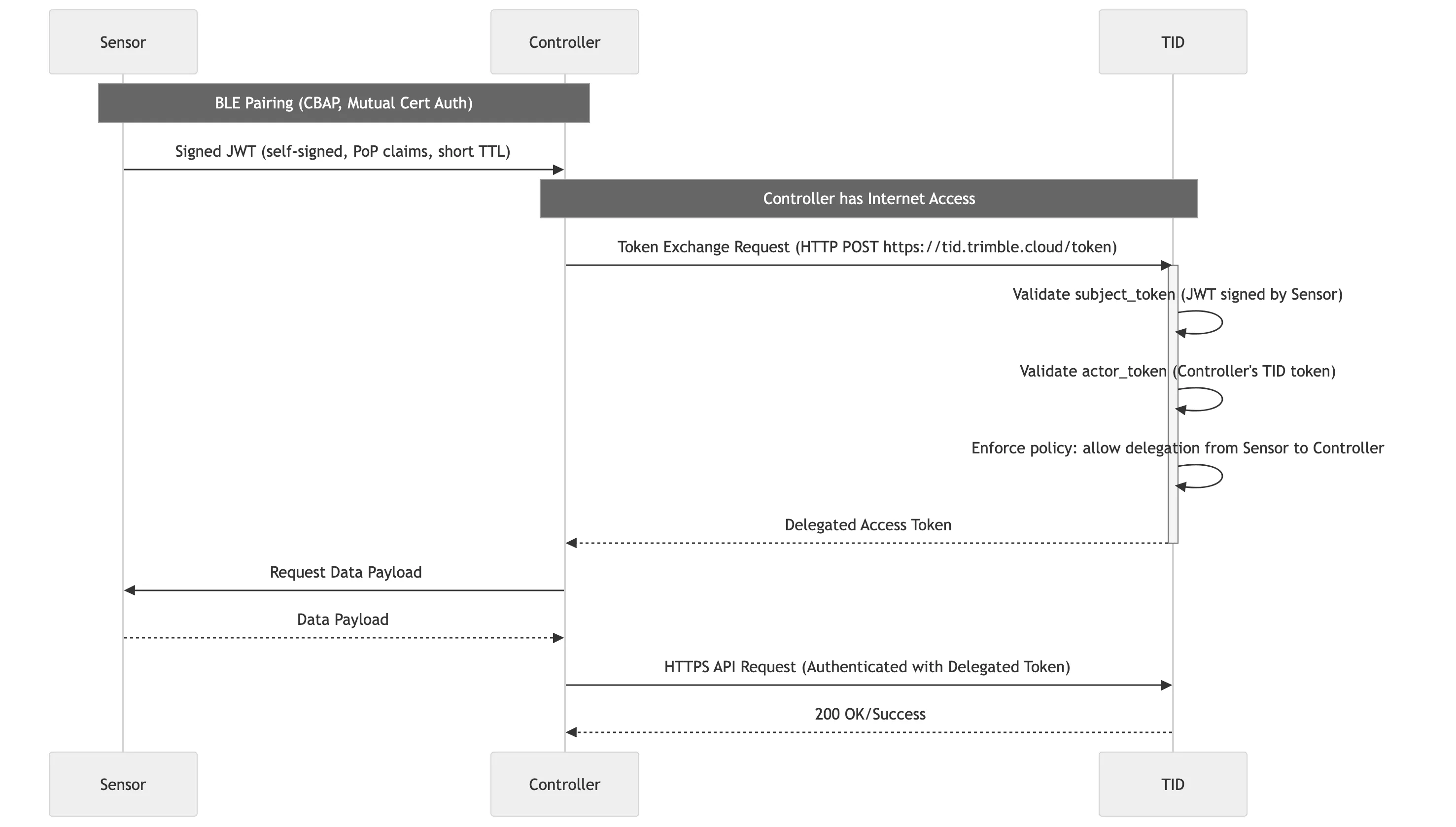

How It Works

1. Sensor generates a self-issued Proof-of-Possession (PoP) token (JWT) and securely transmits it to the controller over BLE.
2. Controller receives the PoP token and, using its own access token, invokes the TID /oauth/token mTLS endpoint.
3. TID validates the input tokens minting an “on-behalf-of” access token with act.sub (actor subject) claim based within the actor_token.

Note: If a valid actor_token is not supplied, the default behavior setting the calling application’s identity as the act.sub shall be maintained.

---

---

Token Request

• API CALL:

  • POST {``mTLS endpoint``}/oauth/token

• HEADER:

  • Accept: application/json

• REQUEST BODY:

  • grant_type: urn:ietf:params:oauth:grant-type:token-exchange
  • subject_token_type: urn:ietf:params:oauth:token-type:jwt
  • actor_token_type: urn:ietf:params:oauth:token-type:jwt
  • actor_token: Controller’s access token.
  • subject_token: Sensor’s self-issued PoP token.
  • client_id: Application ID registered in TID/IAM.
  • scope: (optional) space-separated list of scopes for the requested token.

mTLS token endpoints:

• Staging: https://mtls.stage.id.trimblecloud.com
• Production: https://mtls.id.trimble.com

Example Request

POST: /oauth/token
Host: mtls.stage.id.trimblecloud.com
Accept: application/json
Content-Type: application/x-www-form-urlencoded
Cache-Control: no-cache

scope=openid Pt-Aus-Test-Region TestApplication_integ_1&grant_type=urn:ietf:params:oauth:grant-type:token-exchange&client_id=d13bb025-80df-4f3b-b32a-f739296bf7a1&subject_token_type=urn:ietf:params:oauth:token-type:jwt&actor_token_type=urn:ietf:params:oauth:token-type:jwt&actor_token=eyJhbGciOiJSUzI1NiIsImtpZC...```

Token Response

If the token request succeeds, the server responds with a 200 response code.

A JSON response that is received includes the following values:

• access_token
• expires_in

Example Response

{
"token_type"   : "bearer",
"expires_in"   : 3600,
"access_token" : "eyJhbG...<JWT truncated for brevity>"
}

• To decode and verify the TID JWT Token, refer to Decode JWT

The access token received with this can be used for further API calls by the Controller.

---

Key Actors

1. Sensor Action

• Sensor generates a self-issued PoP token (JWT).
• Securely transmits the signed PoP token to the controller over BLE.
• The cnf claim in the PoP token must contain the SHA-256 hash/fingerprint of the controller’s public key (JWK).

Claims in Sensor’s Self-Issued PoP Token

Claim	Description
iss	Issuer (Sensor’s unique TID ID)
sub	Subject (Sensor’s unique TID ID)
aud	Audience (Controller’s unique TID ID)
exp	Expiration time (max 5 min)
iat	Issued At timestamp
jti	JWT identifier (unique, prevents replay)
cnf	Confirmation claim with SHA-256 hash (jkt) of Controller’s public key

Example cnf claim:

{"cnf": { "jkt": "H7I7rX4p3g-qLh4fK5t0..." }}

---

2. Controller Action

• Controller receives the sensor’s PoP token.
• Calls the TID /oauth/token mTLS endpoint

Security and Best Practices

• The sensor and controller mutually authenticate using Certificate-Based Authentication Protocol (CBAP) over Bluetooth Low Energy (BLE).
• Use BLE with ephemeral ECDH for secure session key establishment.
• Enforce LE Secure and Authentication/Secure Pairing (BT4.2+).
• Use MiTM protection (Passkey Entry, Numeric Comparison, OOB methods).
• Sensor JWT should include:
  • New token per session
  • exp < 5 minutes
  • jti (unique token ID)
  • nonce (64-bit CSPRNG random session value)

---
